Equipment introduction and use

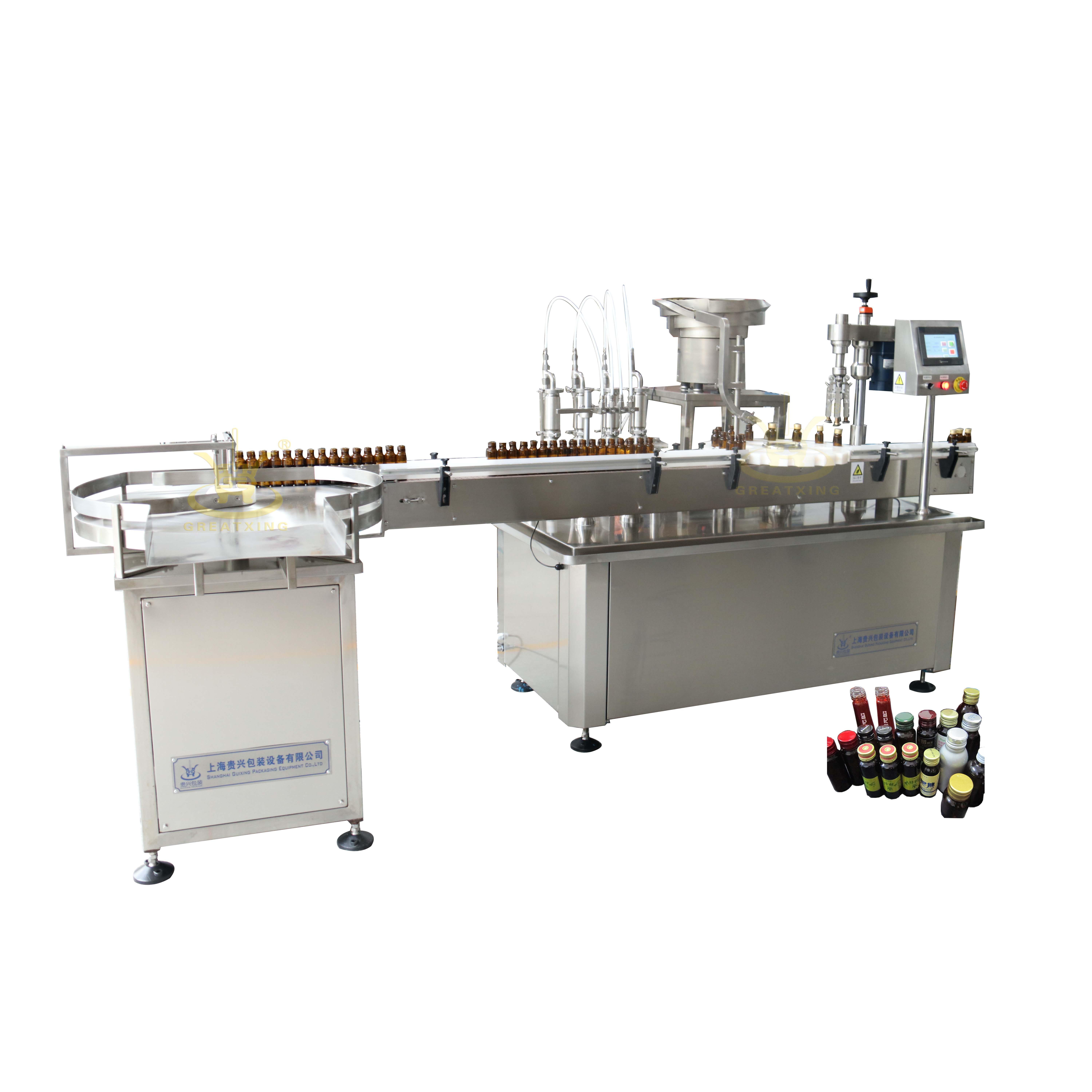

This machine is mainly used for easy pull cover oral liquid bottle filling, sealing, reasonable design, stable performance. The machine all stainless steel, highly in line with the GMP requirements, touch screen man-machine interface, the operation is convenient, intuitive, stable work. The machine set unscramble bottle, filling and cover, rolling cover, out of the bottle, stainless steel metering pump and filling needle structure is simple, convenient disassembly, convenient for cleaning and disinfection; The star wheel is controlled by a high precision CAM indexing mechanism, intermittent transmission to send bottles, good location; Local tracking filling, electromagnetic oscillation send cover, three knife centrifugal sealing. Production location link all have detection, which can realize the bottle does not reach the designated position is not turning, no bottle no filling, no bottle no cover.
The characteristics of
1. Painted surface adopts SUS304 stainless steel material, contact material parts adopt SUS316L high quality stainless steel, in line with the GMP requirements;
2. Taken the product design and reasonable structure, stable running, convenient change specifications, 75 decibels or less noise;
3. Taken the production speed is adjustable, with high precision integrated linear peristaltic pump packing, can be easy adjustable setting formula, the touch screen clean convenient health;
4. U the whole production line operation chain control, convenient production, also can be stand-alone operation control, more intelligent production.
Technical parameters
| The serial number | Name | parameter |
1 | Applicable specifications | 30~60ML |
| 2 | Production capacity | 30 ~ 50 bottles/min |
| 3 | Filling accuracy | ≤±1% |
| 4 | Percent of pass | ≥99.5% |
| 5 | Electrical source | 220V 50Hz |
| 6 | Gas source | 0.5-0.8MPan |
| 7 | Work rate | 3.5kw |
| 8 | Machine net weight | ≈700kg |
| 9 | Overall dimensions | L3300xW600xH1600mm |
