Equipment introduction and use

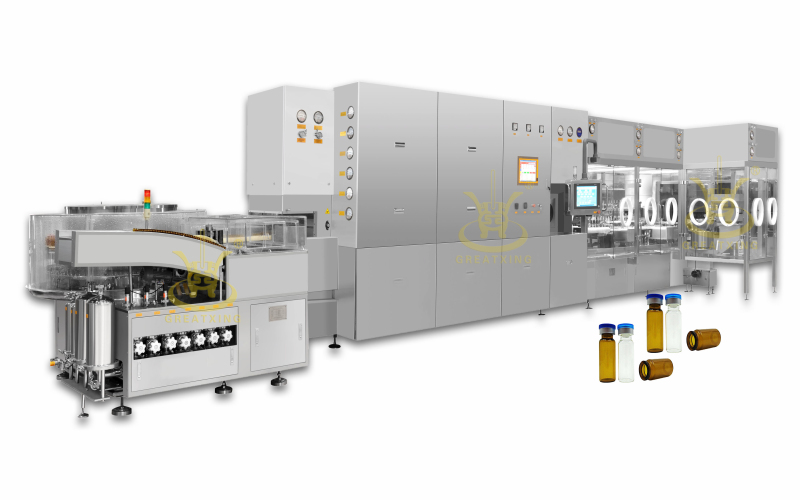

This line by for bottle washing bottle - drying - filling, stoppering - rolling production line lid unit and become, is my company according to the latest design of research and development of GMP requirements to meet customer production requirements. High production efficiency, not filling powder, the whole machine adopts PLC programmable controller to related functions for automatic control, simple operation, easy to adjust. Equipment is mainly used in pharmaceutical, biological pharmaceutical industry and scientific research.
The characteristics of
1. Painted surface adopts SUS304 stainless steel material, contact material parts adopt SUS316L high quality stainless steel, in line with the GMP requirements;
2. Taken the product design and reasonable structure, stable running, convenient replacement specification;
3. Taken the production speed is adjustable, high filling precision, adjustable filling quantity size on the touch screen is convenient;
4. U the whole production line operation chain control, convenient production, can be stand-alone operation control, more humanized and convenient production.
Technical parameters
| The serial number | Name | parameter |
1 | Applicable specifications | 1~20ml |
| 2 | Production capacity | 150 ~ 300 bottle/min |
| 3 | Filling accuracy | ≤±1% |
| 4 | Percent of pass | ≥99.5% |
| 5 | Electrical source | 220V 50Hz |
| 6 | Gas source | 0.5-0.8MPan |
| 7 | Work rate | 4.5kw |
| 8 | Machine net weight | ≈3000kg |
| 9 | Overall dimensions | L13000xW1500xH1950mm |
